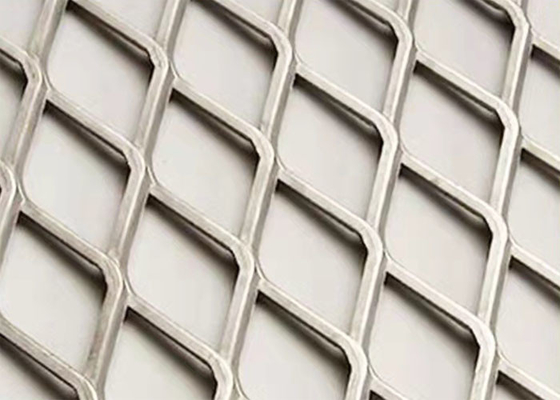

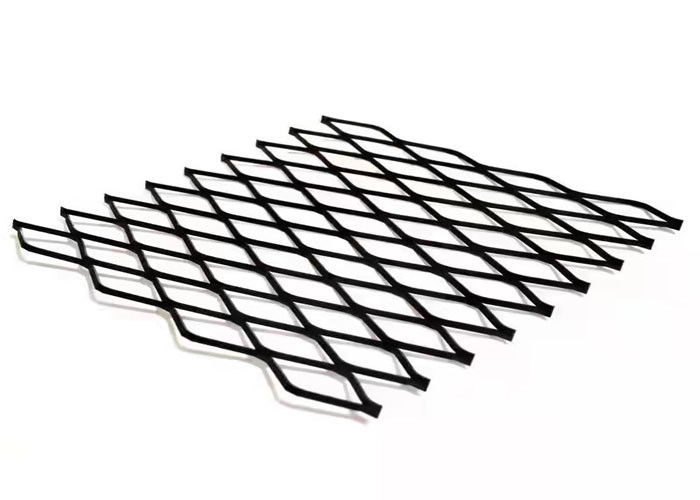

Expanded Mesh Pedal Heavy Galvanized Steel Mesh Metal Decorative Mesh
1. Product Introduction
Steel Grid Plate is also called Steel Grid Plate, grid plate is made of flat steel according to a certain distance and cross-arrangement, and welded into the middle with a square lattice of a steel products, mainly used to make trench cover, steel platform plate, stepladder treadle, such as cross-bar generally used after the twisted square steel.
2. Parameter table
| EXPENDED FLATTENED MESH |
| LWD(mm) |
SWD(mm) |
Strand Width |
Strand Gauge |
%Free Area |
Approx.Kg/m2 |
| 6.05 |
3.38 |
0.5 |
0.8 |
50 |
2.1 |
| 10.24 |
5.84 |
0.5 |
0.8 |
75 |
1.2 |
| 10.24 |
5.84 |
0.9 |
1.2 |
65 |
3.2 |
| 3.80 |
2.10 |
0.8 |
0.6 |
46 |
2.1 |
| 14.20 |
4.80 |
1.8 |
0.9 |
52 |
3.3 |
| 24.40 |
7.10 |
2.4 |
1.1 |
57 |
3.4 |
| 23.20 |
5.80 |
3.2 |
1.5 |
43 |
6.3 |
| 32.70 |
10.90 |
3.2 |
1.5 |
59 |
4 |
| 33.50 |
12.40 |
2.3 |
1.1 |
71 |
2.5 |
| 42.90 |
14.20 |
4.6 |
2.7 |
58 |
8.6 |
| 39.10 |
18.30 |
4.7 |
2.7 |
60 |
7.6 |
| 43.20 |
17.08 |
3.2 |
1.5 |
69 |
3.2 |
| 69.80 |
37.10 |
5.5 |
2.1 |
75 |
3.9 |
3. Product application
This series of steel grating has a center distance of 30MM, which is in accordance with the American standard. It has the strongest resistance to surface impact in the whole steel grating series. It is widely used in power plants, refineries, Sewage Treatment, granaries, chemical plants, highways, airports and docks and other platforms, walkways and drainage covers, staircases and so on. The toothed steel grating can be used in wet and greasy places, especially for offshore oil production platforms.
4. Product advantages
It can be recycled and reused, which is good for environmental protection; aluminum plates can be 100% recycled, which is different from decorative materials such as glass, stone, ceramics, and aluminum-plastic panels, and has a high recycling value.
.
5. Production process
Cut the entire coil to the size you need, if the edge of the production process beyond your tolerance, our skilled technical personnel can help you to remove the excess edge.
6. Installation method
Welding installation, the use of spot welding or two welding will be connected to the Piercing Mesh, usually welding the back of the Piercing Mesh, the advantage of doing so is that the front looks beautiful and generous, no installation marks.
7. Matters Needing Attention
After cleaning, pay attention to avoid secondary pollution of the punching net and keep the punching net clean and tidy.
8. Packing method
The punching plate of stainless steel has higher strength only in the direction of the punching plate height (perpendicular to the plane direction of the punching plate) , and the unreasonable lateral force will lead to deformation or damage, it is suggested that nylon lifting belt should be used for lifting and unloading. If steel wire rope is used for lifting, attention should be paid to the protection of the edge flat steel of the stainless steel punching plate to prevent the permanent deformation or damage of the outer side of the stainless steel punching plate.
