Heating Custom Air Filter Manufacturing Machine / Production Line Paper

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-06-03

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	Negotiable
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	200 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Air Filter Making Machine	Automaticity:	Yes
Warranty:	1 Year	Certification:	CE,ISO
Voltage:	380V Or 220V	Applicable Industries:	Manufacturer
Applicable Row Material:	Air Filter Paper	Application:	Air Filter Paper Pleating
Function:	Pleaeting Air Filter Paper	Type:	Filter Paper Pleating Machine
Machine Type:	Efficient Rotary Pleating Machine	After-sales Service Provided:	Field Installation, Commissioning And Training
High Light:	heating custom air filter manufacturing machine , paper air filter manufacturing machine , heating custom air filter making machine

Heating Custom Production Line Filter Paper Car Air Filter Making Machine

1. Product introduction

Origami machine also known as automatic Origami machine or fully automatic Origami machine is used to fold paper machine, there are two-fold folding folding machine and four-fold folding machine, also known as automatic Origami machine or fully automatic origami machine. This machine can pleating : filter paper,wiresh, window screen, cardboard , synthetic , copper , aluminum , Metallic Foils and so on.

2. Parameter table

Pleating height	8 - 55mm
Layers pleated	1 - 5
Pleating speed	20 - 150 pleats/min
Max. pleating width	1100mm
Thickness of material	0.5 - 4mm
Speed adjustable motor	1.5KW
Power	1.5KW 380V Heater Power: 3KW Heat Temperature: 200°C
Machine weight	800kgs
Machine dimension	1430mm x 1550mm x 1400mm
Alternative width	B-600,B-800,B-1500,B-2100,B3000 mm
Alternative height	15-160 mm

3. Product characteristics

The size can be adjusted by air valve. There are two air filters on the side of the fan, which need to be opened once a week for cleaning. The Feida head mainly sucks up the paper by suction, only one at a time, and then uses the suction wheel to feed the paper into the runway.The folding machine adopts the alternate method of upper and lower knives to complete the folding work. The knife distance is automatically adjusted by the computer, which can meet the requirements of various folding heights, and the size is accurate and flat.

4. Product advantage

1. The filter material is glued and folded on the same machine. After the filter paper is formed, it is transported by a longer conveyor belt so that the hot melt adhesive can be cured and cut to the required length.
2. Both the host and the conveyor are controlled by the frequency converter, which is easy to adjust.
3. The travel distance of the filter material after gluing can be adjusted within a certain range, which is conducive to the dry humidity of the hot melt adhesive, so that it can be folded firmly.
4. Six sets of rollers are on the same disk, which is easy to replace and adapt to the production of different specifications.
5. The glue melting speed is fast, and the amount of glue can be adjusted through the frequency converter.
6. This machine has high production efficiency and good product flatness.
The company can also customize origami production lines of different specifications according to your needs.

5. matters needing attention

The installation environment of the folding machine is good, which is a dry, ventilated and clean working environment, a good working environment and the key factors to prolong the service life of the dryer.

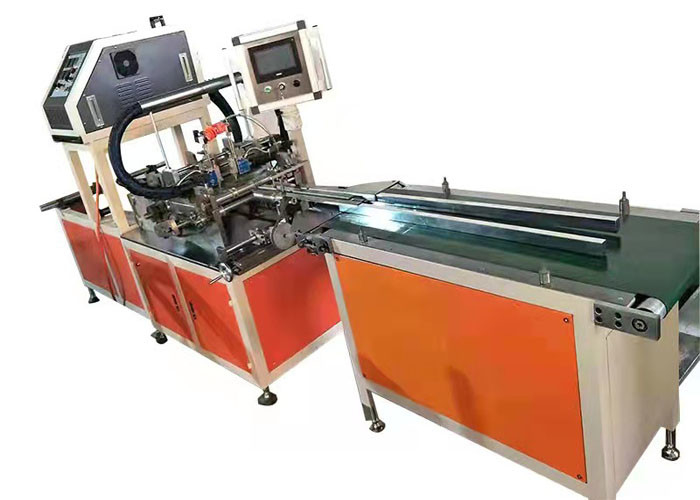

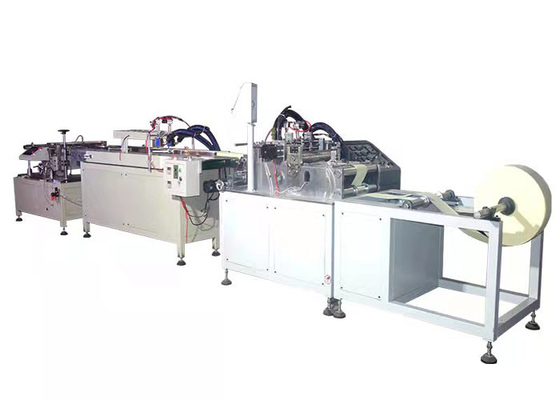

Heating Custom Air Filter Manufacturing Machine / Production Line Paper 1
