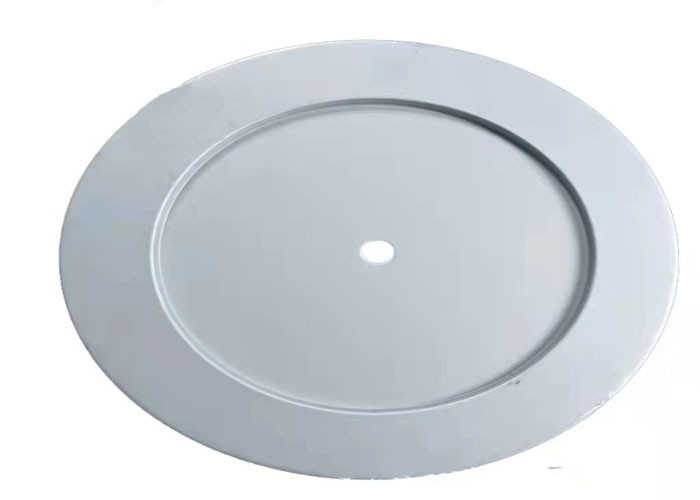

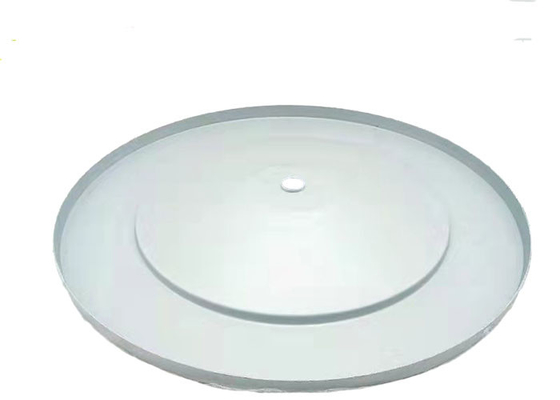

Stamping Stainless Steel ISO Engine Air Filter Element Dust Removal End Cover

Stamping Stainless Steel Dust Removal Filter Element End Cover Filter End Caps


1. Product Description



The end cap of the filter element mainly plays the role of sealing the two ends of the filter element and supporting the filter element. The filter element is pressed into various shapes according to the needs of the steel plate. The filter element is installed on the vehicle and the engine. During the mechanical operation, it will produce vibration, the end cap can effectively improve the bearing capacity of the filter material. One side of the end cap is pressed into a groove which can be used to place the end of the filter material and the adhesive. The other side is bonded with a rubber seal, the utility model has the function of sealing filter material and sealing filter element channel, and the end cover material is made of steel plate, plastic and foaming polyurethane, in which the foaming polyurethane can be heated with the filter material directly by the die, thus saving adhesive and sealing glue.



2. Specifications


There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.


3.  Applications



Changfeng supplied filter end caps/filter covers are widely used for dust filters, air filters, oil filters, fuel filters, activated carbon filter cartridges.



4.Production process


  The filter element end cover is cut by iron plate and stamped by abrasive tools, with high efficiency. Fast delivery.

  The filter element end cover is cut by iron plate and stamped with abrasive tools, which is of high efficiency. Fast delivery.

5. Installation method



Spiral installation: the installation method of industrial dust removal filter element commonly used in the market is applicable to the vertical, horizontal and oblique installation of filter cartridge, that is, the welding scaffold of dust collector panel and extending to the height of filter cartridge After, weld a screw at the joint of the scaffold. During installation, the inside of the filter cartridge passes through the screw and scaffold, and the top of the filter cartridge passes through the screw and scaffold. The sealing ring is in contact with the mounting plate of the dust collector. At this time, find the threaded rod in the bottom mounting hole of the industrial dust removal filter element (the height and length of the threaded rod and support need to be moderate). Then tighten the thread through the rotation of the nut to completely fix the industrial dust removal filter element, and the sealing ring is in full contact with the mounting plate.

.

6. Production Process and Packing



There is the production process of expanded metal mesh. We can see that there are strict procedures from raw materials to finished products. Chang feng could provide production visualization service for clients, which ensures customers can grasp the production schedule in time.



7. company introduction


Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
