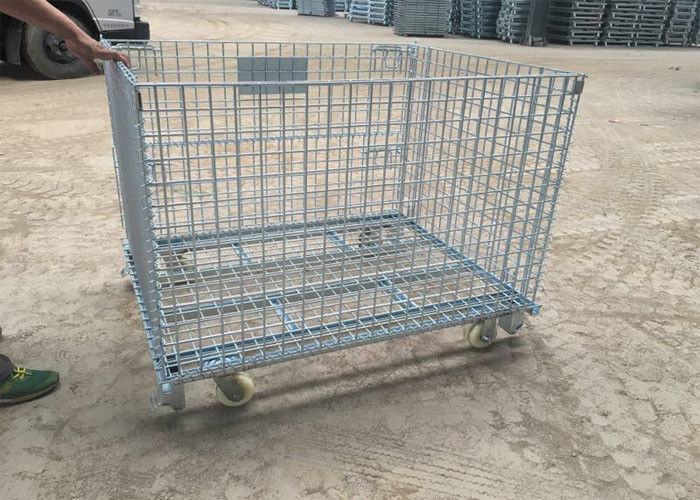

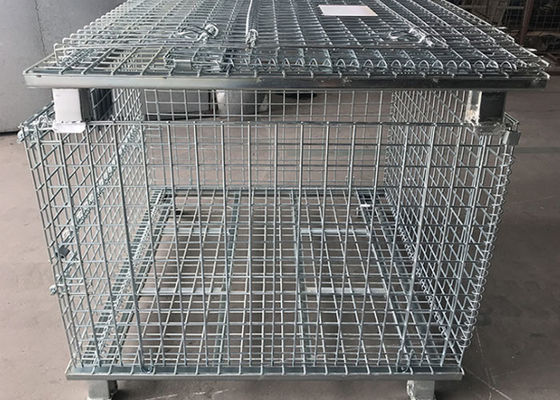

4.8mm Metal Pallet Cage Ordinary Carbon Structural Steel Express Sorting Frame

Conventional 4.8mm Ordinary Carbon Structural Steel Express Sorting Frame Metal Pallet Cage



1. Product introduction

  The heavy-duty storage cage is a special storage cage developed by the storage cage according to the needs of customers. It is welded with angle steel and rectangular pipe. Compared with the ordinary storage cage, it has the characteristics of large bearing capacity and firm structure, and adopts plastic spraying treatment.



2. Parameter table



                                                        A Series



Model	Specifications (mm)	Wire diameter(mm)	Grid (mm)	Bearing(kg)	Dead weight(kg)
A-1	800X600X640	5.8	50X50	800	27
A-2	800X600X640	5.6	50X50	600	25
A-3	800X600X640	4.8	50X50	500	21
A-4	800X600X640	4.8	50X100	400	19



                                                         B Series



Model	Specifications (mm)	Wire diameter(mm)	Grid (mm)	Bearing(kg)	Dead weight(kg)
B-1	1000X800X840	6.0	50X50	1300	44
B-2	1000X800X840	5.8	50X50	1200	41
B-3	1000X800X840	5.6	50X50	1000	39
B-4	1000X800X840	5.3	50X50	800	36
B-5	1000X800X840	4.8	50X50	600	31



                                                        C Series



Model	Specifications (mm)	Wire diameter(mm	Grid (mm)	Bearing(kg)	Dead weight(kg)
C-1	1200X100X890	6.0	50X50	1800	59
C-2	1200X100X890	5.8	50X50	1500	55
C-3	1200X100X890	5.6	50X50	1300	52
C-4	1200X100X890	5.3	50X50	1000	47
C-5	1200X100X890	4.8	50X50	800	41
C-6	1200X100X890	5.8	50X100	1000	47
C-7	1200X100X890	4.8	50X100	500	36

3. Product application



  1. Used for storage, classification, transportation and storage of raw materials, semi-finished products and finished products. It can be used not only as a three-dimensional means of storage, transportation, loading and unloading, but also as a turnover box for logistics, but also as a sales tool. It is applicable to all links of logistics turnover and runs through the whole process of logistics. It is common in large warehouse supermarkets and manufacturing industries.

2. The storage cage can be used not only in the factory production workshop, but also in the supermarket as display, promotion and storage, and can be used outdoors. It is widely used in die casting, forging parts, auto parts, motorcycle parts, metal stamping parts, engineering machinery parts, metal products, pipe fittings, gears, building bathroom parts, lighting, furniture, logistics, catering, food and other industries. The improved storage cage can be placed on shelves, assembly lines or stacked: the storage cage with wheels can be easily and quickly turned around in the workshop, and the storage cage with PVC plate or iron plate can prevent small parts from leaking.



4. Product advantages



1.  With forklift, elevator, crane and other equipment, the storage cage can be used for transportation, handling, loading and unloading, storage and storage and storage of the storage cage, which is suitable for all links of logistics.

2. The storage cage is spot welded with strong steel bars, and the bottom of the storage cage is welded and reinforced with U-shaped channel steel to make the structure more solid. The storage cage has the advantages of simple operation, wide application and long service life. It can also be modified to use other appliances. (e.g. feet with wheels)

3.As a storage container, it can be used independently or with forklift and other handling tools; Consistent specifications and fixed capacity, which is conducive to warehouse inventory; It is welded from high-quality steel, with strong bearing strength and a wide range of storage types. It can be used in many ways, not only as an independent storage container, but also with a forklift for turnover or transfer, but also with wheels for mobile use. It can also be stably stacked to four or five floors to realize three-dimensional storage. Flexibility, half of the door net can be opened for inventory or picking up when stacking or not stacking.

4. The most prominent feature of the storage cage is its folding structure, which can help enterprises improve storage space and save turnover and transportation costs. The material used determines that the storage cage will not be corroded, aged, deformed, durable, and the service life can reach 10 years. Processing with net cover, caster, hollow plate, bottom plate, traction tools, interlayer mesh, etc.



5. Production process



1. The storage cage uses Q195 high carbon iron wire as raw material and is cold drawn into finished wire. Then the semi-finished mesh is formed by welding. After the mesh is made, it can be galvanized or sprayed with plastic for surface treatment (the storage cage is generally Galvanized). After the surface treatment, it can be assembled and finally made into finished products. The size of the storage cage can be customized according to the customer's requirements. When purchasing the storage cage, you should consider the external size of your product, the maximum load-bearing requirements you design, whether your storage cage is used for storage or turnover, whether it needs stacking, etc.

2. The main raw material of the storage cage is high-strength steel wire drawn by high-speed wire, and the general wire diameter is 5mm, 6mm and 6.4mm. The mesh spacing of mesh welding is generally 50 × 100,100 × 100,50 × 50. The bottom of the storage cage is welded by U-shaped steel, which is rolled by cold-rolled strip mill, and the four corners of the bottom are punched by stamping parts at one time. ​​​​

3. The mesh is made of raw material Q235 high-speed wire, which is processed into thin wire with a wire diameter of more than 58 or 60, and then cut into various lengths. It is made into mesh by touching the mesh with a welder. After being made into mesh, it is assembled, and then galvanized or plastic sprayed for surface treatment to form semi-finished mesh. Nanjing shuoling mesh is treated with zinc plating and plastic spraying. The antirust zinc plating is better than plastic spraying. Wire diameter is an important parameter of bearing capacity.



6. Installation method





1. For ease of use, storage cages are designed to be foldable. Therefore, it needs to be assembled before use

2. Goods storage cages are widely used in warehouses, supermarkets, exhibitions and so on. When the storage cage is placed horizontally on the ground, the goods can be accessed from the top of the storage cage; When the storage cage is stacked, the front of the storage cage can be opened to access goods from the front.

3. When the storage cage is empty, it is best to fold it for storage and make full use of the space. After assembly, it can be placed horizontally or stacked according to the situation.

4. Before installation and construction, be familiar with drawings, and prepare construction scheme for three-dimensional warehouse, special or complex installation.

two

5. Before installation, the transportation road and power supply on the installation site shall be known.

6. Before installation and construction, the on-site roof and internal painting works shall be basically completed, the relevant foundation floors and ditches shall have been completed, and the concrete strength shall not be less than 75% of the design strength; Sundries and garbage at and near the installation site shall be removed.

7. Unpack all the packages on the shelf and check whether all parts and accessories are complete according to the installation drawings.





7. matters needing attention







  1. The storage cage shall not be placed at the inclined position of the ground or concave convex use of stacking height on flat ground

2. When loading the storage cage, try to use it within the original design bearing range. If it is overloaded, it will cause damage the damage of the storage cage will accelerate the impact on the service life. If a stronger bearing is required, friends can tell us the bearing requirements at the beginning of the design, and we can design it for you the storage cage conforming to the load can let you purchase at one time and use it for a long time



8. Packing method



  Place the folded storage cage one by one from low to high, pack it with packaging film, and trap both ends of the storage cage with packaging tape to prevent sliding. It can also be packaged according to customer requirements.
