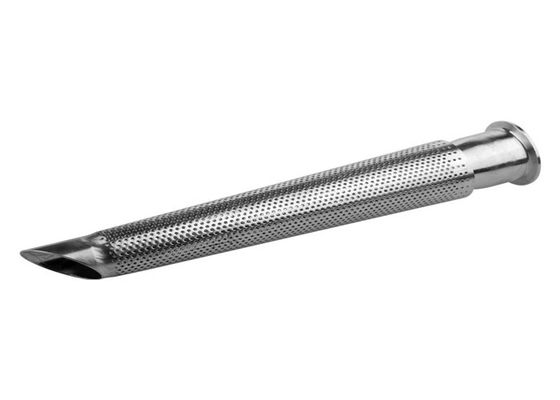

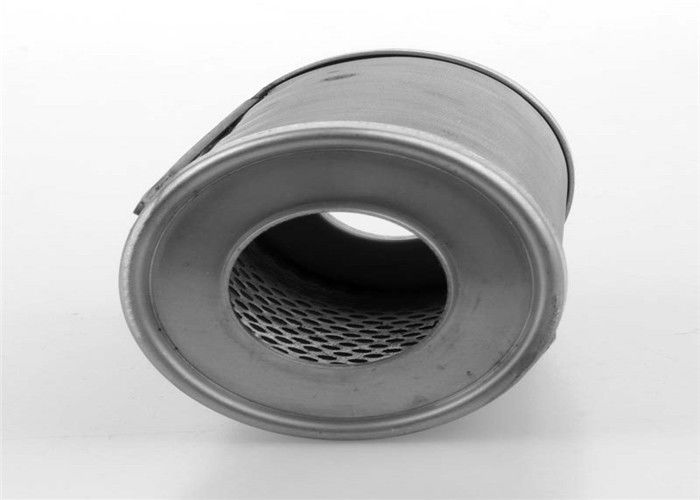

100 Micron Stainless Steel Filter , Metal Filter Element 0.37mm Thickness

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	>=10 Sets $72.00
Packaging Details:	wooden box packing Customized by customer requires
Delivery Time:	10-15 work days 1 - 100 Set
Payment Terms:	L/C, T/T
Supply Ability:	500 Set/Sets per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Filter Element	Certificate:	ISO9001
Surface Treatment:	Smooth	Core Components:	Filter
Warranty:	1 Year	Length:	250mm
OD:	65mm	After-sales Service Provided:	Online Support
Packing:	Wooden Cases	Local Service Location:	Local Service Location:
High Light:	100 micron stainless steel filter , ISO9001 100 micron stainless steel filter , 0.37mm metal filter element

Stainless Steel Cylinder With Mesh Filter -4°F~212°F 3, 5, 10,20 And 50 Micron.Stainless Steel Filter Element

1. Product introduction

Skeleton: Regular interface, smooth surface, stainless steel or carbon steel, surface galvanized or nickel plated, durable, not easy to rust, high temperature, high pressure, corrosion resistance.

2. Parameter table

Absolute Filter Rating	Bubble Piont Pressure	Average Air Permeability	Thichness	Weight	Porosity	Dirt Holding Capacity
(渭)	(Pa)	(l/dm2/min)	(mm)	(g/m2)	(%)	(mg/cm2)
3	12300	9	0.35	975	65	6.4
5	7600	34	0.34	600	78	5.47
7	5045	57	0.27	600	72	6.47
10	3700	100	0.32	600	77	7.56
15	2470	175	0.37	600	80	7.92
20	1850	255	0.49	750	81	12.44
25	1480	320	0.61	1050	79	19.38
30	1235	455	0.63	1050	79	23.07
40	925	580	0.66	1200	77	25.96
60	630	1000	0.7	750	87	33.97

CF9009-02-00	FILTER(PLEATED MATERIAL)	FIBERGLASS
CF9009-02-00	FILTER RATING	MICRON
CF9009-02-00	END CAPS	GALVANIZED STEEL SHEET
CF9009-02-00	INNER FILTER CORE/ INNER FILTER SKELETON	GALVANI ZED STEEL SHEET
CF9009-02-00	WORKING PRESSURE
CF9009-02-00	SEAL/ O-RING

3. Product characteristics

1.The quality and performance can be guaranteed as original elements.
2.Temperature Range -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)
5.Filtering precision 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mes
7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR seals.

hydraulic filter, stainless steel filter cartridge.

4. Production process

1.We use imported depthype filter material,tapered pore structure,gradient filter,can intercept granule furthest, to extend the service life.

2.We use hightech support materials.Hightech support materials can not only play the role of support filter, material and avoiding comprehensive deformation,but also protect the materials from being damaged during processing.

3.We also use the special spiral wrapping belts,so that filter layers can be connected firmly.Stationary pleated distance ensures the uniform flow when fluid penetrating the filter layer.Not only improving pressure drop,but also extending service life.

hydraulic filter, stainless steel filter cartridge
