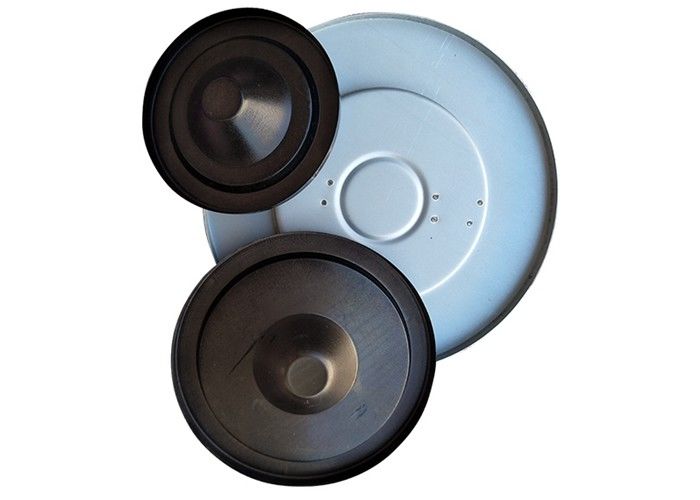

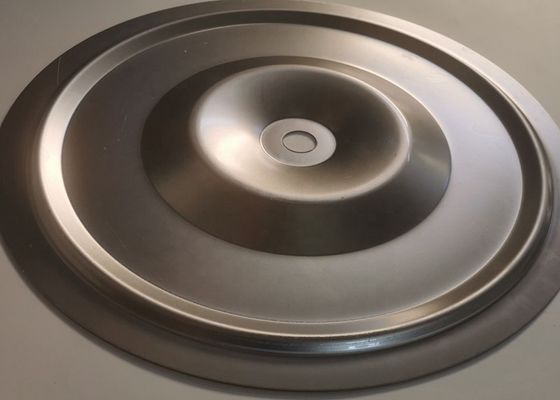

Round Metal Filter Material With Hole End Cap Filter End Caps
1. Product Description
Filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. ChangFeng has been specialized in the metal filter end caps for decades with a wide range of end caps for the cartridge filter. We are able to advice customers on the best material proper thickness opt for.
2. Specifications
| Open Round End Cap with Tri-Bolt Holes |
| |
Inches |
Millimeters |
| Outer diameter |
12.75 |
323.85 |
| Inner diameter |
8.5 |
215.9 |
| Inner height |
0.54 |
13.716 |
| Outer height |
0.5 |
12.7 |
| Inner rim diameter |
6.75 |
171.45 |
| Open Round End Cap with Outer Lip |
| |
Inches |
Millimeters |
| Outer diameter |
12.75 |
323.85 |
| Inner diameter |
8.5 |
215.9 |
| Inner diameter |
0.625 |
15.875 |
| Outer height |
0.368 |
9.3472 |
| Lip |
0.375 |
9.525 |
| Open Round End Cap |
|
| |
Inches |
Millimeters |
|
| Outer diameter |
12.75 |
323.85 |
|
| Inner diameter |
8.5 |
215.9 |
|
| Inner height |
0.5 |
12.7 |
|
| Outer Height |
0.5 |
12.7 |
|
| Closed Round End Cap |
|
| |
Inches |
Millimeters |
|
| Outer diameter |
12.75 |
323.85 |
|
| Inner diameter |
8.375 |
212.725 |
|
| Inner height |
0.5 |
12.7 |
|
| outer height |
0.5 |
12.7 |
|
| Closed Round End Cap with Bolt Hole |
|
| |
Inches |
Millimeters |
|
| Outer diameter |
12.75 |
323.85 |
|
| Inner diameter |
8.375 |
212.725 |
|
| Inner height |
0.5 |
12.7 |
|
| Outer height |
0.5 |
12.7 |
|
| Bolt Hole |
0.625 |
15.875 |
|
| Open Round End Cap with Flange |
|
| |
Inches |
Millimeters |
|
| Outer diameter |
5.75 |
146.05 |
|
| Inner diameter |
2.5 |
63.5 |
|
| Inner height |
0.5 |
12.7 |
|
| Outer height |
0.278 |
7.0612 |
|
| Closed Round End Cap |
|
| |
Inches |
Millimeters |
|
| Outer diameter |
5.25 |
133.35 |
|
| Inner diameter |
2.5 |
63.5 |
|
| Inner height |
0.875 |
22.225 |
|
| Outer height |
0.172 |
4.3688 |
|
3. Product advantage
25 years' experience in producing filter end caps.
2. Accurate size according to customer requirements
3. Ensure the filters have a longer life with excellent heat and chemical resistance.
4. Effectively improve the capacity of the filter material.
5. Various exist mold to save your cost.
6. Qualified raw materials with certifications to make the filter caps.
4.Service
we can provide a free sample with our catalog. But the courier charge will on your side. We'll send back the courier charge if you make an order.
4. Characteristics
Materials: galvanized steel, stainless steel, fingerprint proof, copper / brass, etc
Thickness 0.30 mm to 3.00 mm
Outer diameter 20.00 mm to 1000 mm
Type on / off, with / without holes, customized
Delivery time according to customer requirements
Packaging plastic bag / piece or customized
It is used in dust catcher, air filter, fuel filter, oil filter, air compressor, water filter, activated carbon filter, etc.
Provide OEM
Quality control ISO certification
After sales service, product testing report, online tracking.
5. FAQ
1.Certificates:
RoHs,UL,SGS,MSDS,DIN53438
2.Payment terms:
50% deposit upon getting the order,balance against the B/L copy.
3.Delivery date:
About 7 working days(≤500pcs), special order is negotiable to be quicker.
4.Sample Terms:
We can supply 1-2 small samples for tree but express cost is covered by your side.
5.Minimum Order Quantity:
No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.
6.Price Terms:
EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.
7.Lead time:
3 Days for a 40ft container, weeks for two 40ft container.
