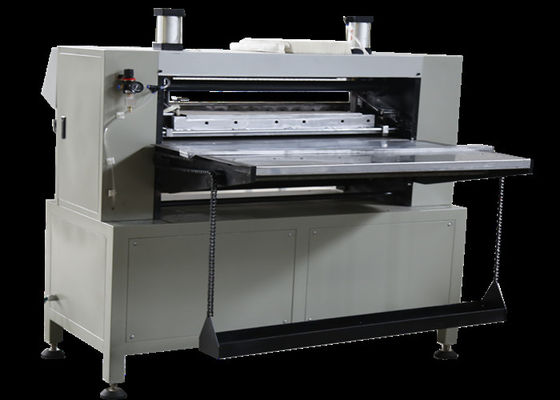

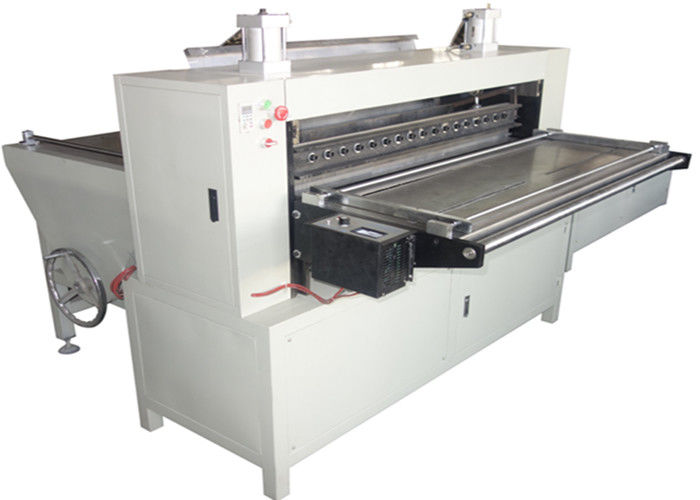

200 C Degree Oil Filter Making Machine Knife Pleating Media Pleating

200°C Yellow And White Filter Paper Pleated For Filter Parts In The Automotive Industry Oil Filter Making Machine

1. Product introduction

Three type:light weight ,high weight and standard Model

Pleating height:5-55mm

Layers pleated:1-5 Layers

Pleating speed:20-150 pleats/min

Max.pleating width:600-2100mm

Thinkness of material:0.5-5mm

power:1.5kw 380v

Heater power:3kw

Temperature:0-200°C

The machine can be made as customer‘s requirements

2. Parameter table

3. Product characteristics

Automatic reciprocating folding machine is suitable for folding various materials, including filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material. The end face of the folding material is flat, and the folding height is automatically adjustable. The full-automatic reciprocating origami machine is composed of material frame, slitting part and folding fixed part. The machine can not only fold single-layer materials, but also fold multi-layer materials, with more than 7 layers. The whole machine is driven by 7 servo motors to realize full four axis control. The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.

4. Superiority

All parameters can be adjusted on the touch screen without manual adjustment by the operator, which greatly reduces the equipment adjustment time required for product replacement and makes the operation more convenient.

1. The folding work of the paper folding machine is completed by alternating the upper and lower knives. The knife distance can be adjusted automatically by computer to meet the requirements of different folding heights. The size is accurate and even.

2. The filter paper completes the work of automatic counting, folding and preheating on the origami machine.

3. The machine can also fold all irregular folding height changes.

4. The folding knife angle of this machine can be changed at will to ensure that no filter paper material will be damaged in folding.

5. Production process

The clapping origami production line of our company is suitable for corrugated forming of various filter materials in filter manufacturing industry. The height of corrugation can be adjusted continuously, which is especially suitable for the processing of various products.Features of the machine:Automatic reciprocating folding machine is suitable for folding various materials, including filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material. The end face of the folding material is flat, and the folding height is automatically adjustable. The full-automatic reciprocating origami machine is composed of material frame, slitting part and folding fixed part. The machine can not only fold single-layer materials, but also fold multi-layer materials, with more than 7 layers. The whole machine is driven by 7 servo motors to realize full four axis control. The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.
