Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover

Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover

  • Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover
  • Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover
Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-54-86
Payment & Shipping Terms:
Minimum Order Quantity: 10 / set
Price: Negotiable
Packaging Details: covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Set/Sets per Week filter end caps 5000 sets/week
Contact Now
Detailed Product Description
Product Name: Filter End Caps Core Components: Bearing, Pump
Brand Name: CHANGFENG Dimension: As Your Requirements
Size: Customzised Packing Type: Bags Or Cartons
Weight: 0.1-2kgs, 2-20KG, 750kg, 1-100kg Material: Galvanized, Metal, Steel, Anti-fingerprint
Applicable Industries: Hotels, Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops Surface Treatment: Zinc-plated/powdered/anti-fingerprint/plastic Spraying Or Else
High Light:

Powdered Aem Air Filter Cover

,

Zinc Plated Unicorn Air Filter Cover

,

Powdered aem air filter cover

OEM Galvanized Metal Filter End Caps For Air Cartridge Filter Filter End Caps



1. Product Description



The filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. Chang Feng has been specialized in metal filter end caps since 1996 with a wide range of existing molds for air filter end caps for the cartridge filter. We are able to advise customers on the best material proper thickness opt for. Welcome to contact us to have further discussion.



2. Specifications



There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

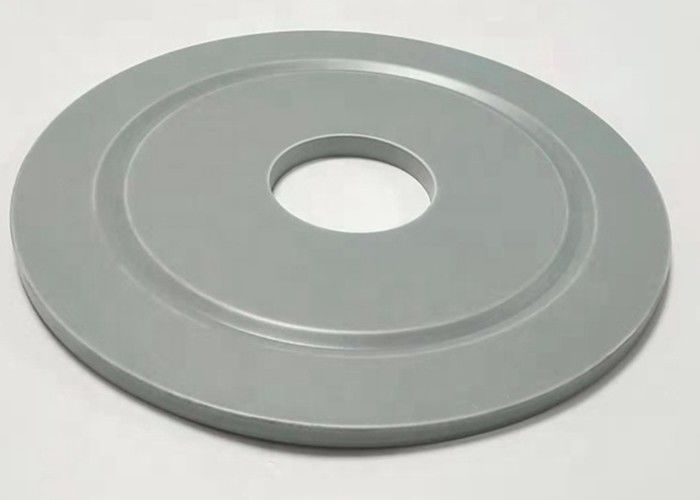

Open Round End Cap with Tri-Bolt Holes
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.54 13.716
Outer height 0.5 12.7
Inner rim diameter 6.75 171.45
Open Round End Cap with Outer Lip
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner diameter 0.625 15.875
Outer height 0.368 9.3472
Lip 0.375 9.525
Open Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.5 12.7
Outer Height 0.5 12.7
Closed Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
outer height 0.5 12.7
Closed Round End Cap with Bolt Hole
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
Outer height 0.5 12.7
Bolt Hole 0.625 15.875
Open Round End Cap with Flange
  Inches Millimeters
Outer diameter 5.75 146.05
Inner diameter 2.5 63.5
Inner height 0.5 12.7
Outer height 0.278 7.0612
Closed Round End Cap
  Inches Millimeters
Outer diameter 5.25 133.35
Inner diameter 2.5 63.5
Inner height 0.875 22.225
Outer height 0.172 4.3688
Product Name
Filter End Caps
Material
Galvanized steel, stainless steel, anti fingerprint, copper/brass, etc customized
Thickness
0.30 mm to 3.00 mm
Outer Diameter
20.00 mm to 1000 mm
Types
Open/closed, with/without holes, customized
Delivery Time
According to customer's requirement
Packing
Poly bag/Piece or customized
Applications
Dust filters, air filter, fuel filter, oil filter, air compressor, water filter, activated carbon filters cartridges, etc.
OEM
Available
Quality Control
ISO Certicificate
After-sale Service
Product test report, online follow up.



3. Product advantage



25 years' experience in producing filter end caps.
2. Accurate size according to customer requirements
3. Ensure the filters have a longer life with excellent heat and chemical resistance.
4. Effectively improve the capacity of the filter material.
5. Various exist mold to save your cost.
6. Qualified raw materials with certifications to make the filter caps.

4.Service

we can provide a free sample with our catalog. But the courier charge will on your side. We'll send back the courier charge if you make an order.



4. company introduction



Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.

The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality.

The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products.

The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system.

The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.





Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover 0Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover 1Zinc Plated Unicorn Air Filter Cover , Powdered Aem Air Filter Cover 2
