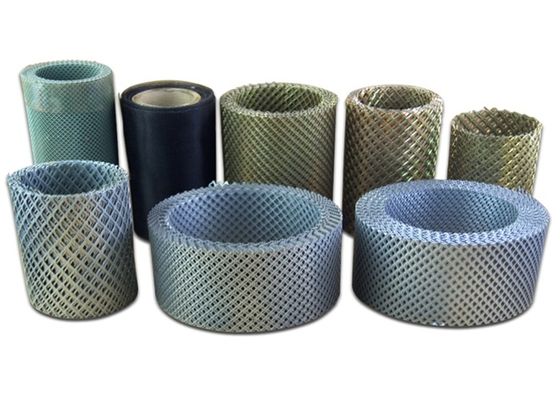

0.6mm Plate Thickness Stainless Steel Filter Mesh , Galvanised Steel Wire Mesh

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-4

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	Woven bag
Delivery Time:	3-5 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Kilogram/Kilograms per Week

Contact Now

Detailed Product Description

Product Name:	Air Filter Mesh	Machinery Test Report:	Provided
Material:	Carbon Steel	Hole Size (mm):	712, 510, 10*12
Roll Size:	1M * 20 M/roll	Packing:	Woven Bag
Plate Thickness (mm):	0.35/ 0.4/ 0.5/ 0.6	Surface Treatment:	Galvanized Plated
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory	Application:	Component Of Filter, Supporting And Protection
High Light:	0.6mm stainless steel filter mesh , 0.6mm galvanised steel wire mesh , galvanised steel wire mesh

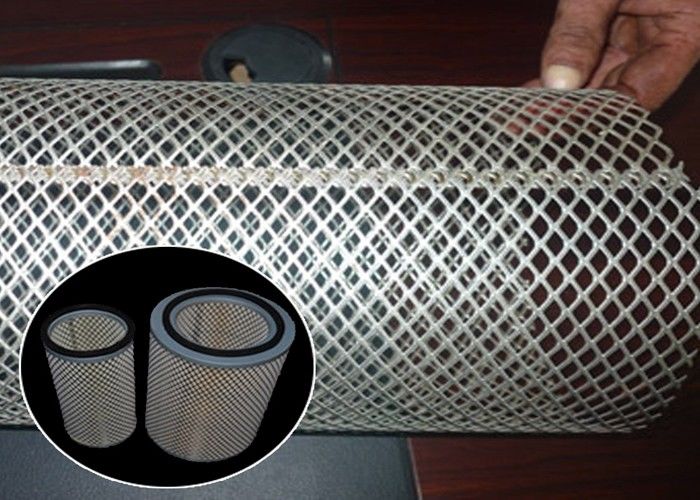

Protection Mesh Galvanized Roll Filter Material Manufacturer Air Filter Mesh

1. Product introduction

Material: Aluminum ,galvanized sheet, stainless steel wire mesh, copper mesh

1. Consistent pore size distribution guarantees a significantly higher particle separation

2. Material: SUS304 316 316L, 316L is mainly designed for marine aquaculture and pharmacy.

3. Mesh count per liner inch: 2-635mesh

4. Wire thread can be from 0.08” to 0.0008”

5. Width: usually 40” and 48”, special can be ordered

2. Parameter table

Thickness	Strand Width		Hole Size			Note
2mm	5mm		25×50mm			In Panel Big Hole
2.5mm	5mm		30×60mm
3mm	5-10mm		40×80mm
2-3mm	5-15mm		50×100mm
3mm	20-30mm		90×200mm
3mm	20-30mm		100×250mm

0.8mm		1.5mm		5×10mm	In Roll Small Hole

0.3-1.5mm		0.3-2.5mm		(2-15)mm×(3-30)mm
as you need		as you need		2×3
as you need		as you need		3×4
as you need		as you need		4×5
as you need		as you need		4×6

Mesh/inch	Wire Diameter(mm)	Aperture (mm)	Mesh/inch	Wire diameter(mm)	Aperture (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385

3. Technology

Galvanized Surface Treatment
Cold-galvanizing
Hot-galvanize Technique

4. Product use

1. Chemical filtering

2. Food and beverage for food filtering

3. Mining, main use coarse mesh, such as crimped wire mesh

4. Refining, mail use stainless steel fine mesh

5. Healthcare

6. Architectural, advise crimped wire mesh and coarse wire mesh used as protection mesh

7. Acoustic, headphone net

8. Automotive

5. Advantage

Any product can be customized according to customer needs

1. Corrosion resistant, stainless steel grade is acid and alkali resistant.

2. High temperature resistant can bear 800 degree centigrade

3. Uniform wire diameter, error is +-2micron

6. Service

It depends on the demension . If we have the exist mold , sample free . You can only afford the delivery expense . If we don't have the exist mold ,the sample fee can be returned back after you placed the order .
